3o kW Generator

RK Mobile Kitchens & Event Support can field a variety of generators to meet any power requirements for temporary food services, shelter operations, lighting facility support vehicles and other emergency response needs and services.

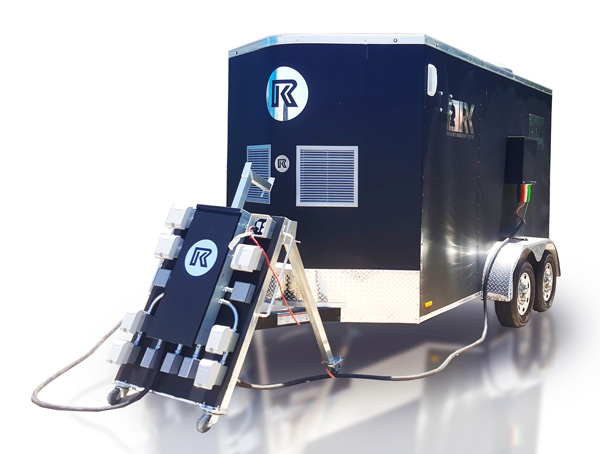

Our 30 and 80 kW generators have been designed to specifically supply power in remote locations and compact camps. Our smaller 100 AMP VP30 generator provides power in 120/40 voltages, while our larger 300 AMP VP80 generator (pictured) provides 200 AMPS to its electric distribution panel in 208/120 voltages.

Technical Specifications

Diesel Fuel Capacity

• VP 20 – 60 gal fuel tank (onboard 57’ Kitchen trailer)
• VP 30 – 60 gal fuel tank
• VP 80 – 100 gal fuel tank

Fuel Consumption

• VP 20 - 1.82 gal/hr. at 100% load – ~33 hour run
  0.924 gal/hr. at 50% load – ~65 hour run
• VP 30 – 2.35 gal/hr. at 100% load – 25.5 hour run
  1.22 gal/hr. at 50% load – ~49.2 hour run
• VP 80 – 7.92 gal/hr. at 100% load – ~ 12.62 hour
  4.22 gal/hr. at 50% load – ~23.7 hour run

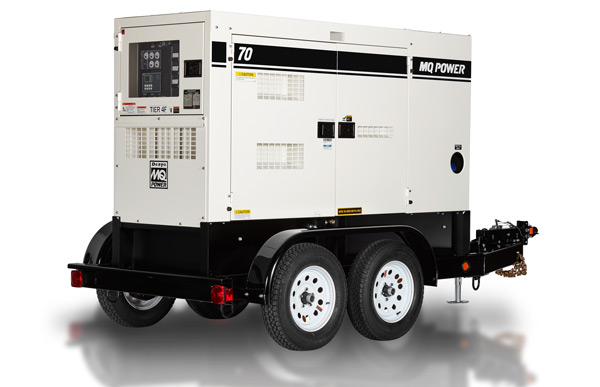

7o kW Generator

DCA70SSIU4FMQ Power Series Generator

Our 70 kVA generator offers a prime rating of 56 kW (70 kVA), and a standby rating of 62 kW (77 kVA). An electronic governor maintains frequency to ±0.25% from no load to full load (steady state load), and features fan auto start stop that allows the generator to start from a remote location. The system’s design and weatherproof steel housing provides a low operating noise level of 65 dB(A), less than the noise experienced inside a car traveling 60 mph, as well as a compact operational footprint. Its comprehensive analog control panel provides instrumentation, including: AC ammeter, AC voltmeter, frequency meter, AC circuit breaker, engine gauges and much more.

Engine Specifications

• Make/Model: Isuzu / BR-4JJ1X
• Emissions: EPA Tier 4 Final Certified
• Starting System: Electric
• Design: 4-cycle, water cooled, direct injection,
  turbocharged, DOC, SCR
• Engine Power Output: 95.2 bhp (71 kW)

• Fuel Tank Capacity: 103 gal (390 L)

Trailer Specifications

• Model #: TRLR70US
• Trailer Length: 169.4 in (4938 mm) [~16’ 2”]
• Trailer Width: 72.5 in (1841.5 mm) [~6’]
• Trailer Height: 24.2 in (615 mm) [~2’]
• Overall Height (w/ generator): 92.5 in (2350 mm) [~7’ 9”]

• Gross Vehicle Weight Rating (GVWR): 7,000 lb (3175 kg)
• Gross Axle Weight Rating (GAWR) (ea.): 3,500 lb (1,588 kg)
• Coupler Rating: 3” Pintle Eye (25,000 lb)
• 2-5/16” Ball Coupler: 14,000 lb
• Tire Size: ST205 / 75DI5 LR-C
• Tire Load Rating (ea.): 825 lb (826 kg)
• Wheel Bolt Pattern: 5 Lug on 4.5 in

Specifications

Unit Specification

• Prime Rating: 56 kW (70 kVA)
• Standby Rating: 62 kW (77 kVA)
• Generator RPM: 1800
• Voltage (Three Phase): 208, 220, 240, 416, 440, 460, 480V Switchable
• Voltage (Single Phase): 120, 127, 139, 240, 254, 277V Switchable
• Generator Design: Revolving field, Self-ventilated
  Drip-proof, Single bearing
• Voltage Regulation: ±0.5 % (No Load to Full Load)
• Power Factor: 0.8
• Armature Connection: Star with Neutral/ Zig Zag
• Excitation: Brushless with AVR
• No. Poles: 4-pole
• Frequency: 60 Hz

• Frequency Regulation: ±0.25 % (steady state load)

• Sound Level: 65 dB(A) (Full Load at 23 ft.

• Generator Length: 105.12 in (2670 mm) [~8’ 9”]

• Generator Width: 37.4 in (950 mm) [3’ 2”]

• Generator Height: 68.3 in (1735 mm) [5’ 8”]

• Dry Weight: 3,329 lb (1,510 kg)

• Wet Weight: 4,211 lb (1,910 kg)

• Max Lifting Point Capacity: 6,960 lb (3,157 kg)


Fuel Consumption

• Full load: 4.4 gph (16.6 lph)
• 3/4 load: 3.5 gph (13.4 lph)
• 1/2 load: 2.6 gph (9.8 lph)
• 1/4 load: 1.7 gph (6.4 lph)
• DEF Tank Capacity: 7.4 gal (28L)
• Coolant Capacity: 5.5 gal (21 L)
• Oil Capacity: 3.96 gal (15 L)

• Battery: 12V 75Ah x 1

Estimated Run Before Refill

• Full load: ~23.4 hours
• 3/4 load: ~29.4 hours
• 1/2 load: ~39.6 hours
• 1/4 load: ~60.6 hours

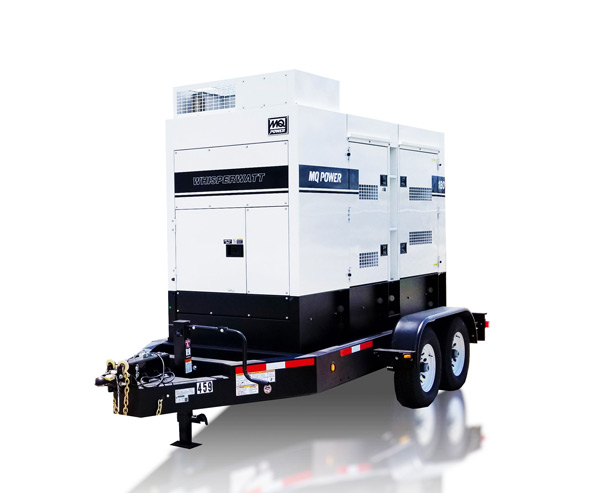

180 kW Generator

DCA180SSJU4FMQ Power Series Generator

Our 180kVA generator offers a prime rating of 144 kW (180 kVA), and a standby rating of 158 kW (198 kVA), with precise voltage control. An electronic governor maintains frequency to ± 0.25% from no load to full load (steady state load). Equipped with a Tier 4 certified John Deere diesel engine to easily meet the stringent EPA standards while providing profitable performance and reliability.The system’s design and weatherproof steel housing provides a substantially low operating noise level of 70 dB(A), approximately the noise experienced inside a car traveling 60 mph, as well as a compact operational footprint.

It features an auto/start/stop digital controller that allows the generator to start from a remote location. Its comprehensive analog control panel provides instrumentation, including: AC ammeter, AC voltmeter, frequency meter, AC circuit breaker, AC load percentage, engine gauges and much more.

Engine Specifications

• Make/Model: Isuzu / BR-4JJ1X
• Emissions: EPA Tier 4 Final Certified
• Starting System: Electric
• Design: 4-cycle, water cooled, direct injection,
  turbocharged, DOC, SCR
• Engine Power Output: 95.2 bhp (71 kW)

• Fuel Tank Capacity: 103 gal (390 L)

Trailer Specifications

• Model #: TRLR220EV
• Trailer Length: 212.9 in (5,408 mm) [~17’ 9”]
• Trailer Width: 89 in (2,261 mm) [~7’ 5”]
• Trailer Height: 26.58 in (675 mm) [~2’ 3”]

• Overall Height (w/ generator): 114.77 in (2915 mm) [~9’ 6”]

• Gross Vehicle Weight Rating (GVWR): 16,000 lb (7,257.4 kg)

• Gross Axle Weight Rating (GAWR) (ea.): 8,000 lb (3,628 kg)

• Coupler Rating: 3” Pintle Eye: 25,000 lb

• 2-5/16” Ball Coupler: 20,000 lb

• Tire Size: ST235/85R16 LR-G

• Tire Load Rating (ea.): 4,400 lb (1,996 kg)

• Wheel Bolt Pattern: 8 Lug

Specifications

Unit Specification

• Prime Rating: 144 kW 180 kVA
• Standby Rating: 158 kW 198 kVA
• Generator RPM: 1800
• Voltage - Three Phase: 208, 220, 240, 416, 440, 460, 480V Reconnectable
• Voltage - Single Phase: 120, 127, 139, 240, 254, 277V Adjustable
• Generator Design: Revolving field, Self-ventilated, Drip-proof, Single bearing
• Voltage Regulation: ±0.5 % (No Load to Full Load)
• Armature Connection: Star with Neutral
• Excitation: Brushless with AVR
• No. Poles: 4
• Frequency: 60 Hz
• Frequency Regulation: ±0.25 % (steady state load)
• Sound Level: 70 dB(A) (Full Load at 23 ft.)
• Generator Length: 141.73 in (3600 mm) [~11’ 10”]
• Generator Width: 51.18 in (1300) [~4’ 3”]
• Generator Height: 88.19 in (2240 mm) [~7’ 4”]
• Dry Weight: 8,532 lb (3,870 kg)
• Wet Weight: 11,266 lb (5,110 kg)
• Max Lifting Point Capacity: 16,500 lb (7,483 kg)

Engine Specifications

• Make/Model: John Deere 6068HFG05

• Emissions: EPA Tier 4 Certified
• Starting System: Electric
• Design: 4-cycle, water cooled, direct injection, turbocharged. charged air cooled. EGR, DOC & SCR
• Gross Engine Power Output: 257 bhp (192 kW)
• Fuel Tank Capacity: 319 gal (1210 L)

Fuel Consumption

• Full load: 10.1 gph (38.3 lph)
• 3/4 load: 7.8 gph (29.4 lph)
• 1/2 load: 5.8 gph (21.8 lph)
• 1/4 load: 4.0 gph (15.2 lph)
• DEF Tank Capacity: 29.7 gal (112.4L)
• Coolant Capacity: 10.5 gal (39.7 L)
• Oil Capacity: 8.58 gal (32.5 L)
• Battery: 12V 150Ah x1

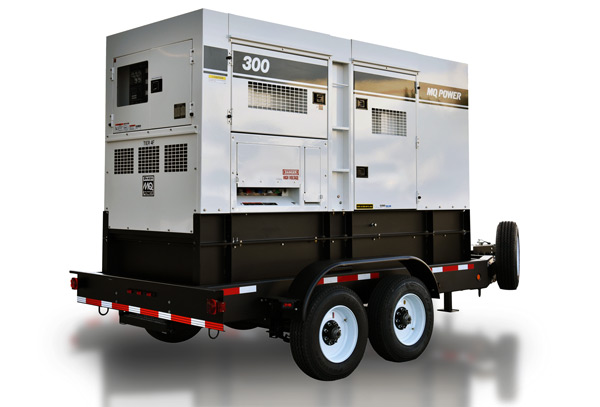

300 kW Generator

DCA300SSJU4F2MQ Power Series Generator

Our 300kVA generator offers a prime rating of 240 kW (300 kVA), and a standby rating of 264 kW (330 kVA), with precise voltage control. An electronic governor maintains frequency to ± 0.25% from no load to full load (steady state load). Equipped with a Tier 4 certified John Deere diesel engine to easily meet the stringent EPA standards while providing profitable performance and reliability.

The system’s design and weatherproof steel housing provides a substantially low operating noise level of 72 dB(A), approximately the noise experienced inside a car traveling 60 mph, as well as a compact operational footprint. It features an auto/start/stop digital controller that allows the generator to start from a remote location. Its comprehensive analog control panel provides instrumentation, including: AC ammeter, AC voltmeter, frequency meter, AC circuit breaker, AC load percentage, engine gauges and much more.

Trailer Specifications

• Model #: TRLR300EV

• Trailer Length: 223 in (5,668 mm) [~18’ 7”]

• Trailer Width: 99.5 in (2,527 mm) [~8’ 4”]

• Trailer Height: 32.17 in (817 mm) [~2’ 8”]

• Overall Height (w/generator): 128.63 in (3267mm) [~10’ 9”]

• Gross Vehicle Weight Rating (GVWR): 20,000 lb (9,071 kg)

• Gross Axle Weight Rating (GAWR) (ea.): 10,000 lb (4535.9 kg)

• Coupler Rating: 3” Pintle Eye (25,000 lb)

• 2-5/16” Ball Coupler: 20,000 lb

• Tire Size: 235/75R17.5 LR-J

• Tire Load Rating (ea.): 6,005 lb (2724 kg)

• Wheel Bolt Pattern: 8 x 6.5

Specifications

Unit Specification

• Prime Rating: 240 kW (300 kVA)
• Standby Rating: 264 kW (330 kVA)
• Generator RPM: 1800

• Voltage - Three Phase: 208, 220, 240, 416, 440, 480V Reconnectable

• Voltage - Single Phase: 120, 127, 139, 240, 254, 277V Adjustable

• Generator Design: Revolving field, Self-ventilated,
  Drip-proof, Single bearing

• Voltage Regulation: ±0.5 % (No Load to Full Load)

• Power Factor: 0.8

• Armature Connection: Star with Neutral

• Excitation: Brushless with AVR

• No. Poles: 4-pole

• Frequency: 60 Hz

• Frequency Regulation: ±0.25% (steady state load)

• Sound Level: 70 dB(A) (Full Load at 23 ft.)

• Generator Length: 149.60 in (3800 mm) [~12’ 6”]

• Generator Width: 59.05 in (1500 mm) [~4’11”]

• Generator Height: 96.46 in (2450 mm) [~8’]

• Dry Weight: 11,220 lb (5,090 kg)

• Wet Weight: 15,010 lb (6,810 kg)

• Max Lifting Point Capacity: 19,000 lb (8,618 kg)


Engine Specifications

• Make/Model: John Deere / 6090HFG06

• Emissions: EPA Tier 4 Final Certified

• Starting System: Electric
• Design: 4 cycle, water-cooled, direct injection, turbo-charged, charged air cooled, EGR, DOC & SCR
• Gross Engine Power Output: 437 bhp (326 kW)

• Fuel Tank Capacity: 430.6 gal (1630 L)

Estimated Run Before Refill

• Full load: ~25.8 hours

• 3/4 load: ~34.4 hours

• 1/2 load: ~48.4 hours

• 1/4 load: ~74.3 hours
